Vintage Astronomy Chart – The Sun’s Apparent Motion

Historical Background

A sequence of golden Sun discs carries the eye around this vintage astronomy chart. The Latin title identifies a theory of the Sun using an eccentric circle without an epicycle. Andreas Cellarius presents the construction as a large circular diagram, with radiating lines, a pastel zodiac and two lower insets. Johannes van Loon engraved the plate for Harmonia Macrocosmica. It concerns a historical account of the Sun’s apparent motion, rather than a modern physical orbit of the Sun around Earth.

Map Details

• Original title: Theoria Solis per Eccentricum sine Epicyclo
• Chartmaker: Andreas Cellarius
• Engraver: Johannes van Loon
• Source atlas: Harmonia Macrocosmica
• First published: Amsterdam, 1660, by Johannes Janssonius
• Edition reproduced: Exact issue unconfirmed
• Subject: A historical model of the Sun’s apparent motion using an eccentric circle
• Original format: Engraved atlas plate with colour

Why the Sun appears more than once

The repeated Sun discs mark different positions within the same explanatory scheme. They are not multiple suns, and they should not be read as independent objects in a planetary system. Their placement allows the reader to compare where the Sun is represented along the path. Each golden face is small enough to leave the connecting lines visible, so the diagram’s geometry remains the main subject.

Fine straight lines radiate from reference points near the middle towards positions around the circumference. Some are labelled for mean motion and others for apparent motion. These distinctions are central to the chart: a geometrical model can separate a regular reference motion from the changing appearance observed from Earth. The offset circle is one historical way to express that difference on a printed page.

An eccentric circle without an epicycle

The title’s phrase sine epicyclo means without an epicycle. An epicycle would add a smaller moving circle to a larger circular path. This plate’s principal construction instead uses an eccentric circle, whose centre is displaced from the observer’s reference point. That is why the difference between centres and the arrangement of radiating lines matter more than the visual similarity of the circles.

The diagram belongs to an Earth-based historical description of the sky. Today, the Sun’s annual movement against the background of stars is explained through Earth’s motion around the Sun. The chart is valuable because it shows a different way that the apparent course could be represented. It is an illustration of a model within the history of astronomy, not a recommendation to use that model for present-day calculations.

Reading the border and the smaller models

The zodiac forms the outer ring, divided into pastel compartments. Written names and symbols identify the signs, with Gemini at the top and Sagittarius near the bottom. Fine graduations run along the inside of the coloured band. The layout joins the positional diagram to a familiar framework of the heavens, helping the reader follow the Sun’s course around the circle.

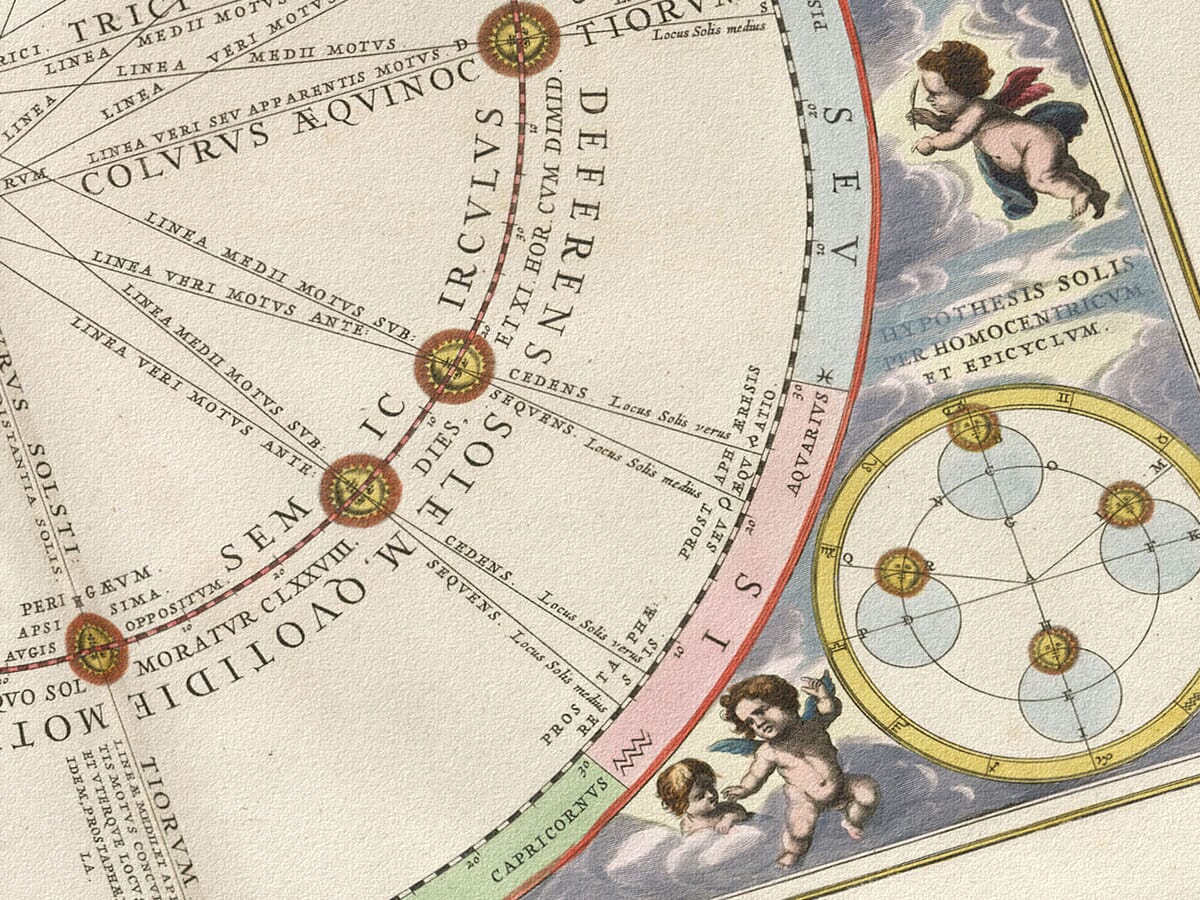

Two round insets sit in the lower corners. The left is a relatively spare diagram labelled for the eccentric solar hypothesis without an epicycle. The right includes four blue circles and golden Sun markers, presenting a contrasting construction involving an epicycle. Their juxtaposition is an important feature of this sheet. The main title describes one model, but the smaller figures allow other geometric arrangements to be considered alongside it.

Clouds, figures and colour

Green title banners hang in the upper corners, supported by small winged figures. Others drift through blue-grey clouds at the sides and bottom. Their red and green fabrics enliven the outer frame while the central diagram remains mostly pale. The green banners also distinguish the text panels from the warm yellow Sun discs and the red line around the zodiac.

The fine rays and repeated circles create a strong pattern, but there is plenty of uncoloured space between them. That balance gives the print clarity when seen across a room. Closer inspection reveals the lettering following different axes and the carefully varied spacing of the Sun markers. The image combines decorative rhythm with a specific explanatory purpose, rather than using astronomy simply as a theme.

Identifying the correct subject

The reproduced artwork is plate 16 of the atlas. Its engraved title securely identifies the solar theory, while the zodiac supplies the surrounding positional framework. Distinguishing those roles is useful: the signs help locate the apparent course, but the main subject is the geometric account of the Sun’s movement. Harmonia Macrocosmica first appeared in Amsterdam in 1660 under Johannes Janssonius. The exact issue behind this image is unconfirmed; the present product is a modern fine art print retaining the fold, engraved detail and colouring visible in the source.
